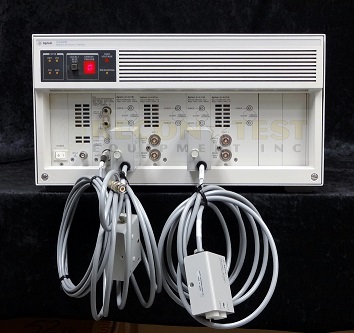

Agilent / HP 4142B Modular DC Source/Monitor with 41421B & 41420A

The HP-Agilent 4142B Modular DC Source/Monitor offers a wide measurement range with excellent sensitivity, especially designed for high-throughput dc semiconductor testers. A completely user-definable system component, the HP 4142B features modular architecture that allows you to build a custom configuration to suit your measurement needs.

Eight plug-in module slots can accommodate any combination of modules. Choose from two types of source/monitor units (SMUs) to force or measure up to 200 V and 1 A: a high-current source/monitor unit (HCU) up to 10 A, a high voltage source/monitor unit (HVU) up to 1000 V, a voltage source/voltage monitor unit (VS/VMU), and an analog feedback unit (AFU).The HP 4142B's instrument command and measurement data storage capabilities, coupled with the high-speed HP-IB interface, minimize computer loading, enhance throughput, and simplify systemization.

Purchase Includes:

• 41421B x2 - DC Source/Monitor Plug-In
• 41420A x2 - PA Meter Source
• 41420-61701 x2 - Quadrax Cable, 3m.
• GNDU cable
