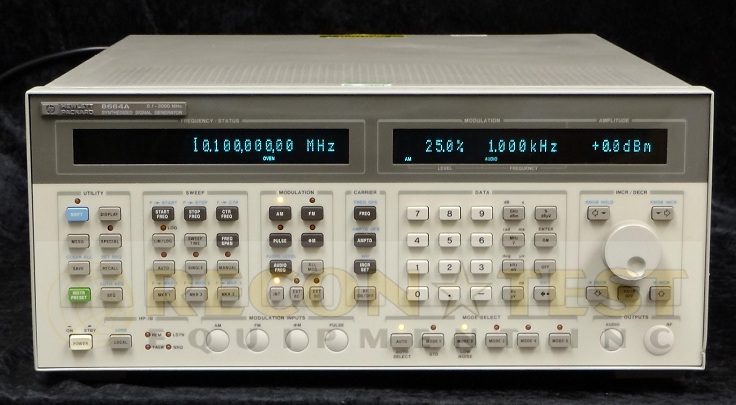

Agilent/HP 8664A 001-003-004 High-Performance Signal Generator, 3 GHz

The Agilent 8664A signal generator is suited for basic receiver testing up to 3.0 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation) . Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 10 MHz are suitable for many applications such as high-speed digital communications

Key Features and Specifications

• <-140 dBc/Hz typical SSB phase noise at 20 kHz offset at 1 GHz with Option 004
• <-100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers
• AM, FM, and optional pulse modulation
• 0.01 Hz frequency resolution
• On-site repair and calibration

Options:

• 001 - High stability time base with EFC
• 003 - Rear panel input/output
• 004 - Low noise option
