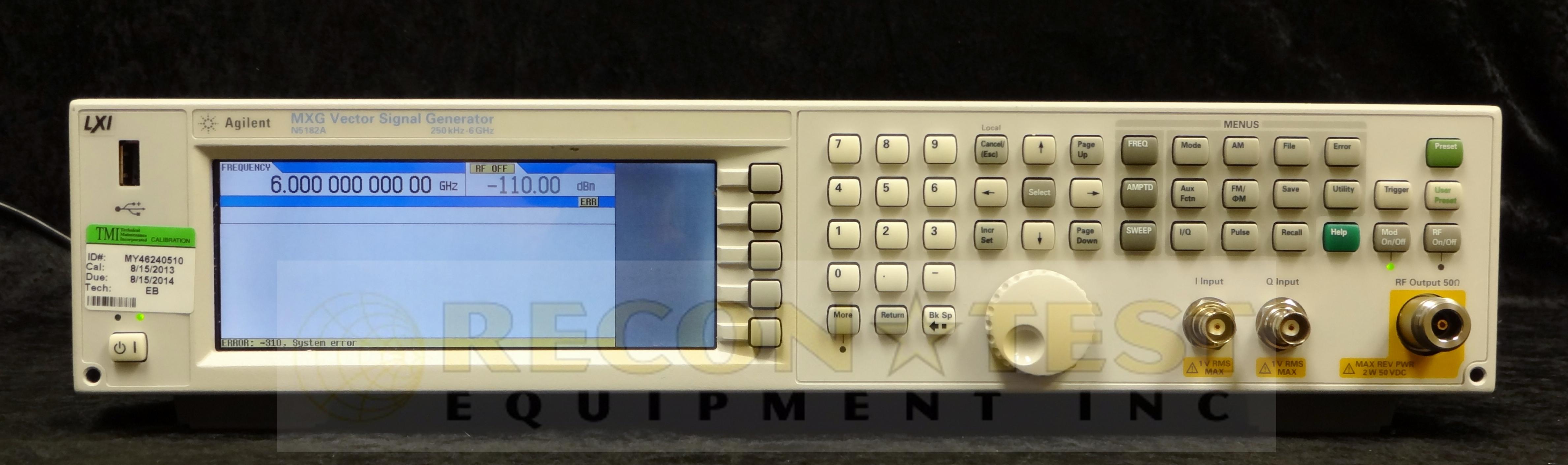

Agilent N5182A /019/1EL/1ER/403/506/652/UNU/UNV 250 kHz to 6 GHz MXG RF Analog Signal Generator

Featuring fast frequency, amplitude, and waveform switching, high power with an electronic attenuator, and high reliability – all in two rack units (2RU) – Agilent MXG vector is optimized for manufacturing cellular communications and wireless connectivity components. Agilent N5182A MXG vector provides better value for your investment by increasing throughput, improving test yield, maximizing uptime, and saving rack space. With scalable RF and baseband performance, the Agilent MXG vector is easily configured to meet your specific test needs.

With the industry's best combination of high power and distortion performance MXG vector signal generators ensure accurate component design verification. When combined with flexible signal creation tools such as Signal Studio software, the low ACLR (-73 dBc at +5 dBm for 1 carrier W-CDMA) makes the MXG a complete solution for W-CDMA, WiMAX™, and more.

Simplified self-maintenance decreases time for repair and performance verification, keeping downtime to less than 2 hours using field-replaceable assemblies.

Key Features and Specifications

• 250 kHz to 6 GHz
• +23 dBm output power @ 1 GHz
• ≤ -121 dBc/Hz (typ) phase noise at 1 GHz and 20 kHz offset
• ≤1.2 ms switching speed in SCPI mode; ≤900 μs simultaneous frequency and amplitude switching in list mode
• AM, FM, ØM, and pulse modulation
• Digital step and list sweep with simultaneous switching of frequency and power

Options

• 506 - 250kHz to 6GHz
• 019 - Upgrade baseband generator memory to 64 Msa
• 1EL - Differential I/Q outputs
• 1ER - Flexible reference input (1-50MHz)
• 403 - Calibrated AWGN
• 652 - Internal baseband generator (60 Msa/s, 8 Msa)
• UNU - Pulse modulation
• UNV - Enhanced dynamic range
