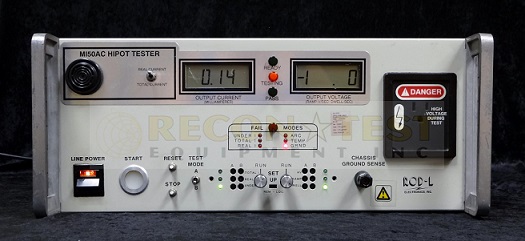

ROD-L M150AC Hipot Test System

The Rod-L M150AC Hipot Test Instrument is a rugged, self-contained tester designed for both laboratory and production use. The main purpose of the M150AC is provide a means of evaluating the dielectric withstand capabilities of the DUT.

Specifications:

    Digital display
    Resolution of programmable test parameters is 0.5%
    Performs an AC dielectric strength (Hipot) test concurrent with a ground continuity test
    Applies a test potential of up to 5000 VAC at 50 milliamps (user programmable)

IEEE-488 BUS-compatible - enables data logging during each test, and remote programming of:

    Test voltage
    Test time
    Voltage ramp rate
    Real current trip point
    Total current trip point
    Under current trip point
