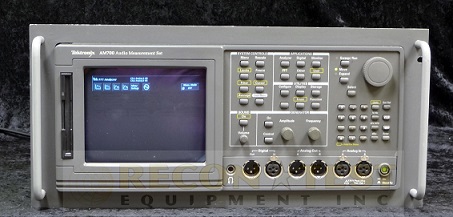

Tektronix AM700 Mixed Signal Audio Measurement Set

​The AM700 is an easy-to-use, high performance audio analyzer. It combines the capability to make conventional electronic audio measurements with more advanced measurements designed for emerging audio technologies.

The AM700 accepts balanced and unbalanced analog signals as well as AES/EBU, SPDIF and optical digital signals. Once acquired, powerful signal processing software performs filtering, analysis and calculations of test results. Measurement applications include FFT (with multitone mode), Graphical Plotting, Monitor, and Digital Interface tools.

An advanced suite of measurements permits users to examine or measure important digital audio interface parameters including eye diagram analysis, timing measurements, data format analysis and jitter measurements. The AM700's reference capability permits the instrument to generate or measure digital audio signals while being synchronized with a house digital reference.

The AM700 has the capability to generate test signals in both analog and digital domains. Internal analog and digital audio generators operate in "true stereo" fashion providing independent signal generating capability for each/channel of each generator. Full support is provided for all conventional test signal needs.

Features:

• Two Channel FFT
• Graphic Plotting
• Multitone Measurements
• Distortion Analysis
• Digital Audio Analysis
• True Stereo Analyzer
• Analog Signal Generator
• Digital Signal Generator
• Min/Max hold
• Headphone Output
• Digital Audio Reference
• GPIB Remote Control
• Hard Copy Output
