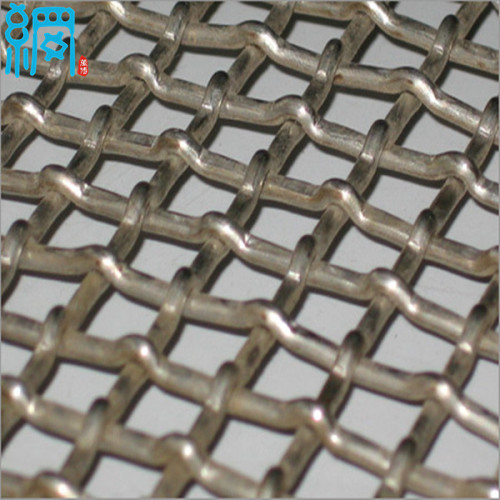

Lock crimped wire mesh

1.Standard:GB/T 13307-1991
2.Material of crimped wire mesh :stainless steel wire,steel wire,copper wire,galvanized wire.
3.Weave types: single lock crimped wire mesh,double lock crimped wire mesh.

4.Crimped wire mesh specification:

1).double lock crimped mesh: 1.5-4.8mm wire diameter, 10-25mm aperture.

2).single lcok crimped mesh: 0.8-5.0mm wire diameter, 4x1-5-10mm aperture.
5.Lock Crimped Mesh Screening Characteristics:

1).Double lock crimped wire mesh

>Warp wire and weft wire are of equal size. Deep crimps lock wires in contact points

>the crimping locks offering further assurance of no wire movement

>This weave prevents materials from slipping down

2).Single lock crimped wire mesh (slot hole):

>Economical manufacturing and large opening size.

>Great open area for increasing flow where binding or clogging can be a problem

>Various kinds of slot length can screen materials in various kinds of different length.
6.Packing of crimped wire mesh:inside with craft paper and outside with woven bags,or as customer’s request.
7.crimped wire mesh application:
(1)car industry, mechanical engineering,building industry
(2)gates and fences for buildings and gardens,
(3)food processing, chemical, paper, coal,mining
