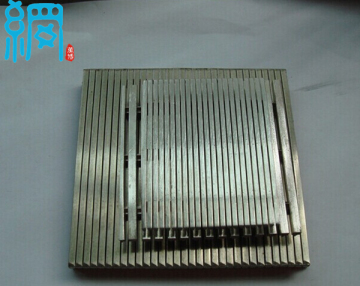

Welded Flat wedge wire screen panel

1.Material: steel wire, stainless steel 304,304L,316,316L

2.Specification:

(1). Profile wire (wedge wire) size: 2.2x3.5mm, 2.2x4.5mm, 3.5x4.5mm, 2.5x4.5mm and so on.

(2). Slot size: 0.2-10mm

(3). Support wire size: 2.2x3.5mm, 2.2x4.5mm, 3.5x4.5mm, 2.5x4.5mm and so on.

(4). Panel size: 500x500mm--3000x3000mm or sizes customized by customers' request.

3.Features:

(1).flat structure, continuous gaps provide larger aperture ratio.

(2).Precision gaps dimensions,long service life.

(3).Easy to leakage,difficult to clog,wear-resistance.

(4).Low cost and easy to install.

4.Application:

Flat Welded Wedge Wire Screen is widely used for screening,filtering,dehydration,

desliming in construction, water treatment,food,petroleum,environmental protection and other industries.
